TREK USER GUIDE

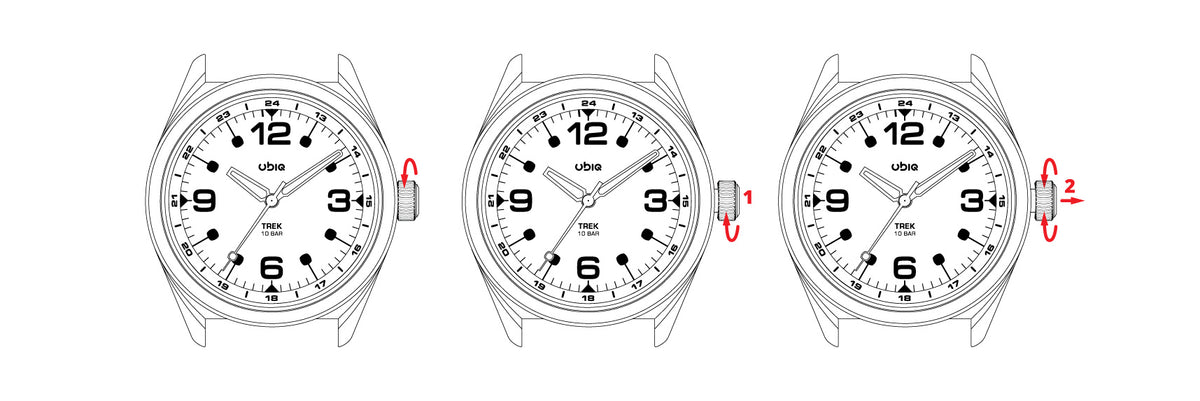

Basic Operation — Miyota 9039 Automatic

1. Unscrew the crown by turning it counterclockwise until it releases.
2. With the crown unscrewed but not pulled out, turn it clockwise to wind the watch manually.
3. Pull the crown out one click and turn it to set the time.
4. Push the crown back in, then gently press and turn it clockwise to screw it securely into the case.

Basic Operation — Seiko VH31 Mechaquartz

The VH31 is battery-powered and does not need winding.

1. Unscrew the crown by turning it counterclockwise until it releases.
2. Pull the crown out one click and turn it to set the time.
3. Push the crown back in to restart the watch, then gently press and turn it clockwise to screw it securely into the case.

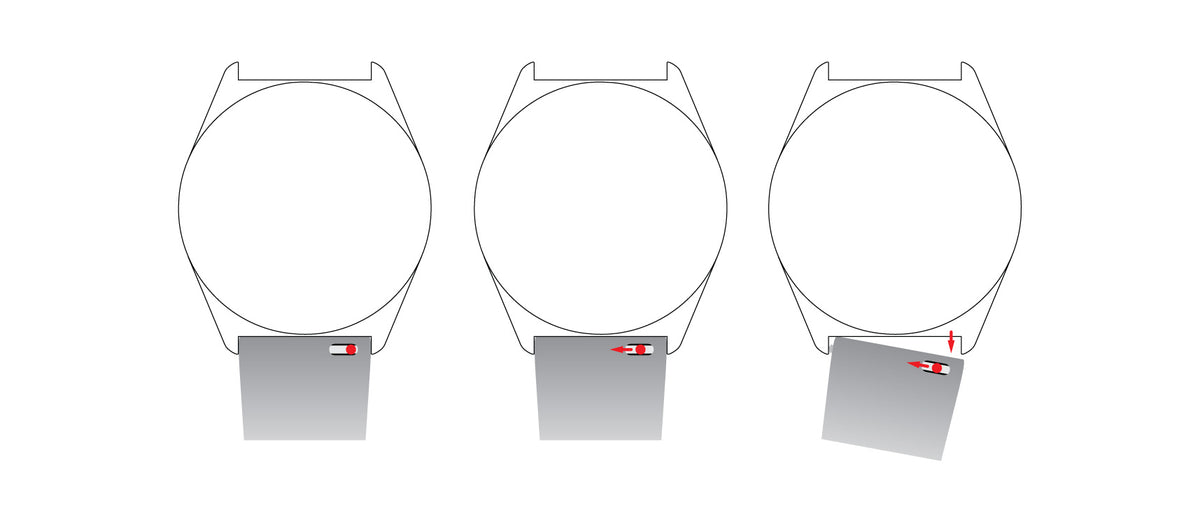

Installing / Removing Marine Recycled Strap

1. Locate the quick-release lever on the back of the strap.
2. Pull the lever away from the lug to release the strap.
3. Slide the strap out of the lugs, lever side first and remove it from the watch.
4. Reverse the process to install a quick-release strap.

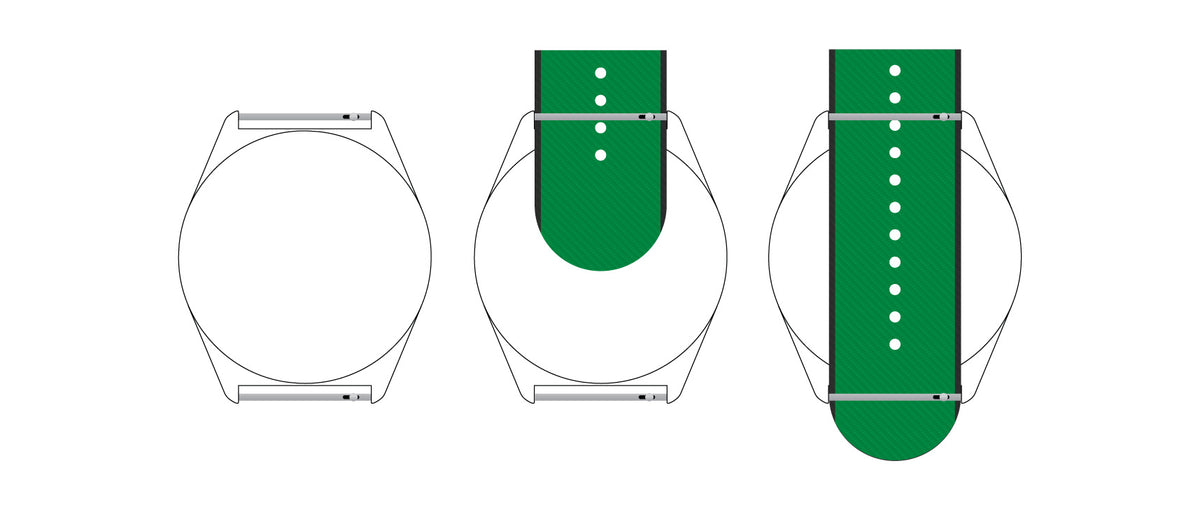

Installing / Removing Nylon Strap

1. With the back of the watch facing you, insert both spring bars into the watch case.
2. Thread the strap through the top spring bar, ensuring the underside of the strap faces up.
3. Continue by threading the remaining length of the strap through the bottom spring bar.
4. Adjust the strap until it is centred and fits securely.
5. Reverse the process to remove the nylon strap.

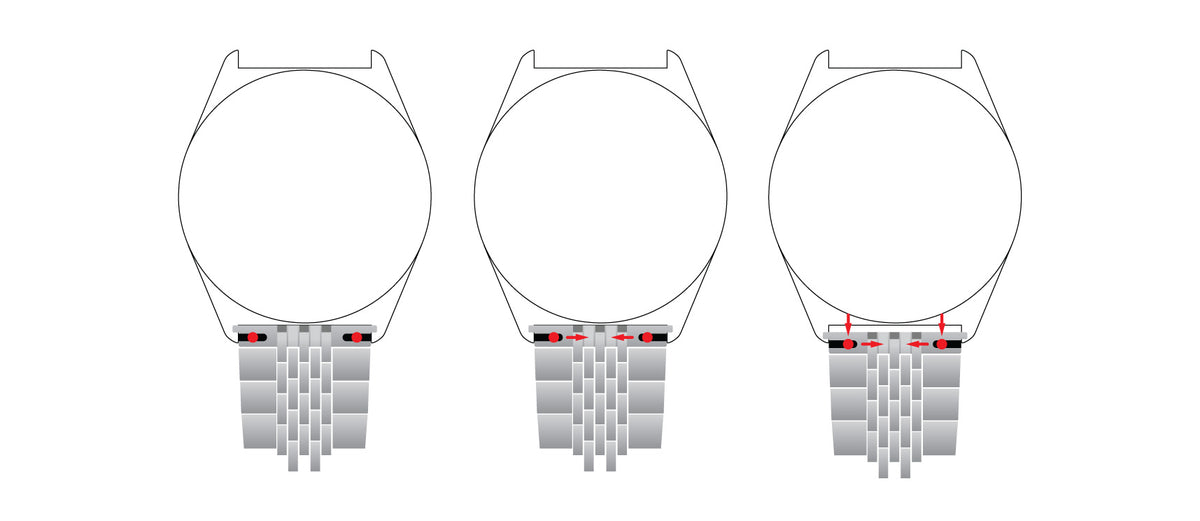

Installing / Removing TREK Bracelet

1. Locate the twin quick-release levers on the back of the bracelet.
2. Pull the levers away from the lugs to release the bracelet.
3. Slide the bracelet out of the lugs and remove it from the watch.
4. Reverse the process to install TREK’s bracelet.

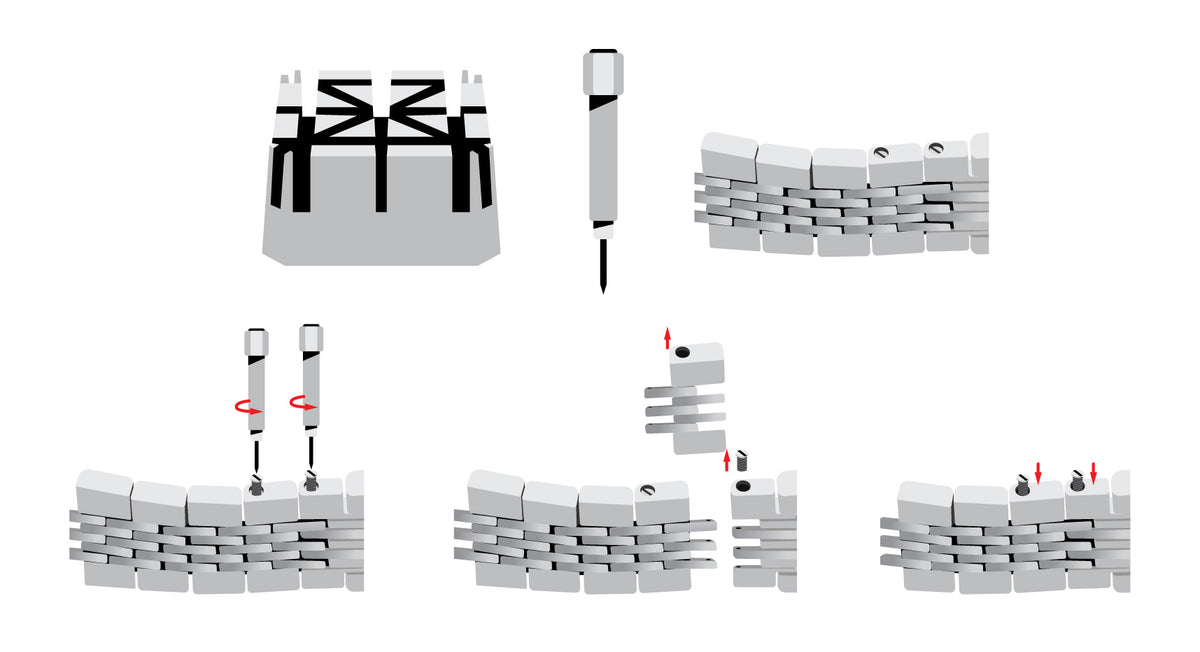

Resizing your TREK Bracelet

1. Gather a watch band holder (or a soft surface) and a flat-head screwdriver (1.2mm).
2. Wear the bracelet with all links intact to gauge number of links to remove.
3. Put bracelet in holder or on soft surface screw side up and unscrew counterclockwise.
4. Try to remove the same number from both sides.
5. Screw remaining links back in a clockwise direction.

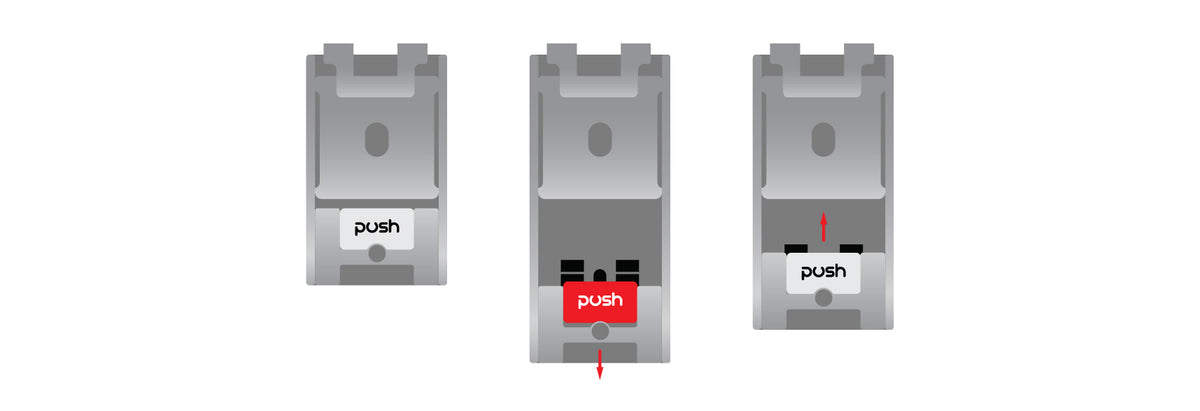

Using TREK’s On-The-Fly Micro-Adjust Clasp

1. Locate the on-the-fly system on the underside of bracelet clasp.
2. Push lever in the direction indicated and pull bracelet downwards to desired length.
3. Push bracelet upwards for 4 clicks of fine adjustment.
