DUAL USER GUIDE

Basic Operation (Miyota 9015)

1. Unscrew the crown by turning it counterclockwise until it pops out.
2. Crown will be in 1st position to wind the watch manually clockwise.
3. Pull the crown to the 2nd position to change the date by rotating it clockwise.
4. Pull the crown to the 3rd position to set the time by rotating it clockwise or counterclockwise.
5. Push the crown back in and screw it clockwise to secure it.

Using the Bezel (Tracking Minutes)

1. The inner bezel ring (triangle ▼, 10, 20, 30, 40, 50) tracks elapsed minutes.
2. Rotate the bezel triangle ▼ (zero mark) to match the current minute hand position.
3. Use inner bezel ring to read elapsed minutes. The illustration shows 10 minutes passed.

Using the Bezel (Tracking Hours)

1. The outer bezel ring (triangle ▼, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11) tracks a second time zone.
2. Use indices on dial to read first time zone. The illustration shows 10:10.
3. Rotate bezel ring to indicate second time zone. The illustration shows 11:10.

Resizing your DUAL Bracelet

1. Gather a watch band holder (or a soft surface) and a flat-head screwdriver (1.2mm).
2. Wear the bracelet with all links intact to gauge number of links to remove.
3. Put bracelet in holder or on soft surface screw side up and unscrew counterclockwise.
4. Try to remove the same number from both sides.
5. Screw remaining links back in a clockwise direction.

Installing / Removing FKM Strap

1. Locate the quick-release lever on the back of the strap.
2. Pull the lever away from the lug to release the strap.
3. Slide the strap out of the lugs, lever side first and remove it from the watch.
4. Reverse the process to install a quick-release strap.

Installing / Removing DUAL Bracelet

1. Locate the twin quick-release levers on the back of the bracelet.
2. Pull the levers away from the lugs to release the bracelet.
3. Slide the bracelet out of the lugs and remove it from the watch.
4. Reverse the process to install DUAL’s bracelet.

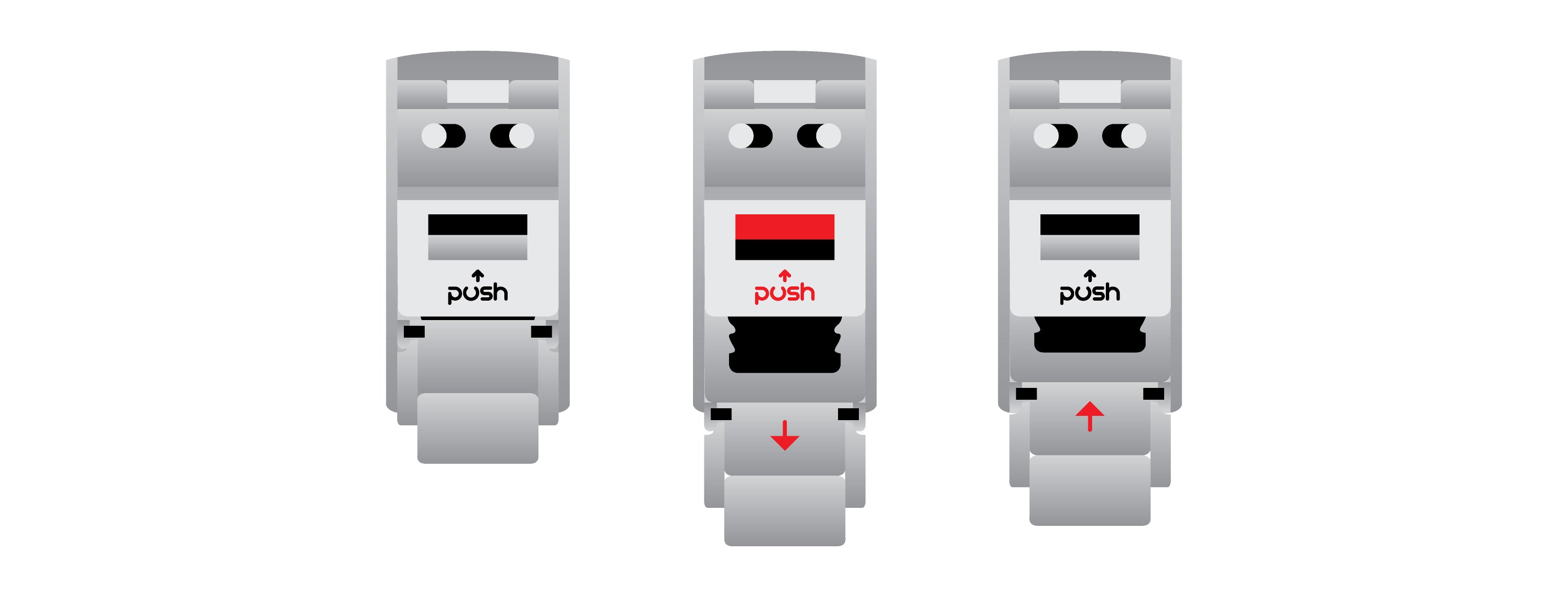

Using DUAL’s On-The-Fly Micro-Adjust Clasp

1. Locate the on-the-fly system on the underside of bracelet clasp.
2. Push lever in the direction indicated and pull bracelet downwards to desired length.
3. Push bracelet upwards for 4 clicks of fine adjustment.
